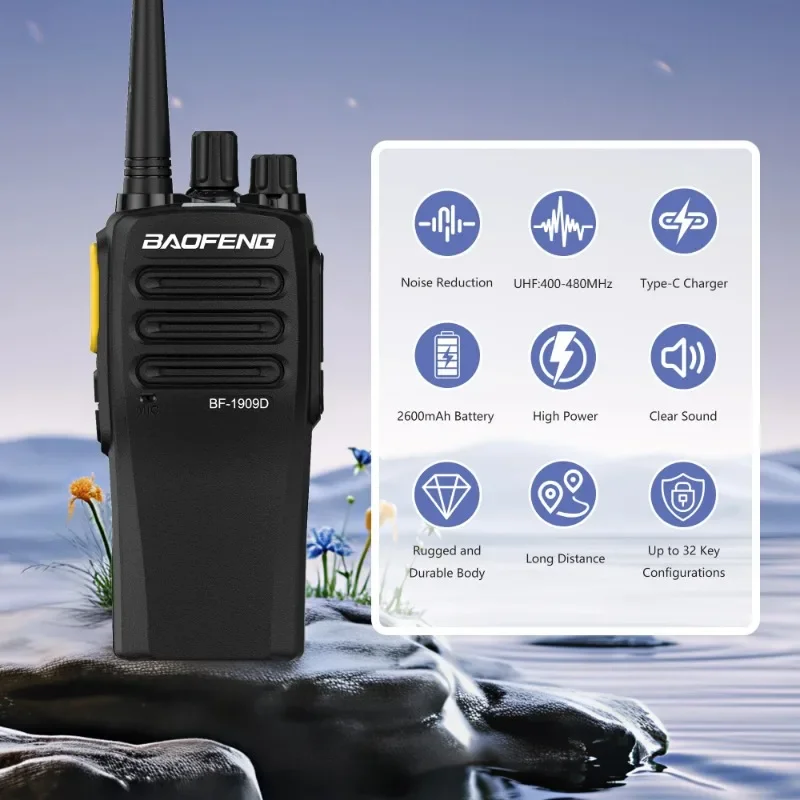

Baofeng BF-1909D Walkie Talkie

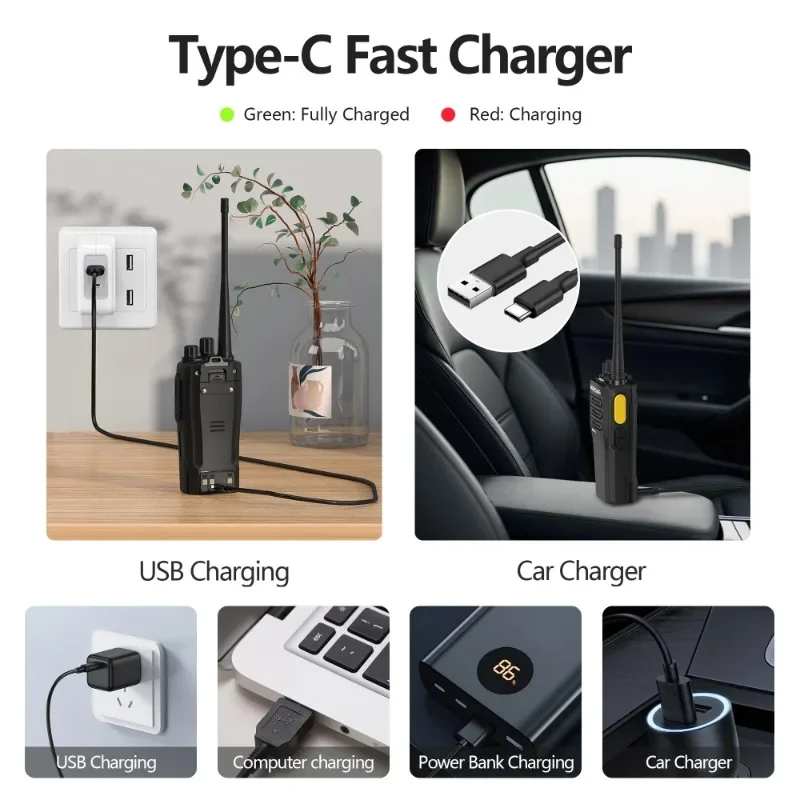

Intelligent Noise Reduction Type-C Charger
High Power UHF Two Way Radio Updated BF-1909 Ham Radio
– Up to 32 Key Configurations –
【Up to 32 key configurations】
BF-1909D is not a DMR digital intercom, it is analog, but with digital key function. That is, the digital intercom communication function, that is (digital call (encrypted communication) function)
You can choose to set the analog mode and digital mode through the software, in the digital mode, those analog CTCSS can not be used. In digital mode, you can only use the key, if you use it with another walkie-talkie without this encrypted call function, you can’t talk to each other, the two walkie-talkies should have or open this function.
If you turn on the digital mode can not be used with BF-888s and other ordinary analog machines, do not use the digital mode on the normal and other analog machines to use.

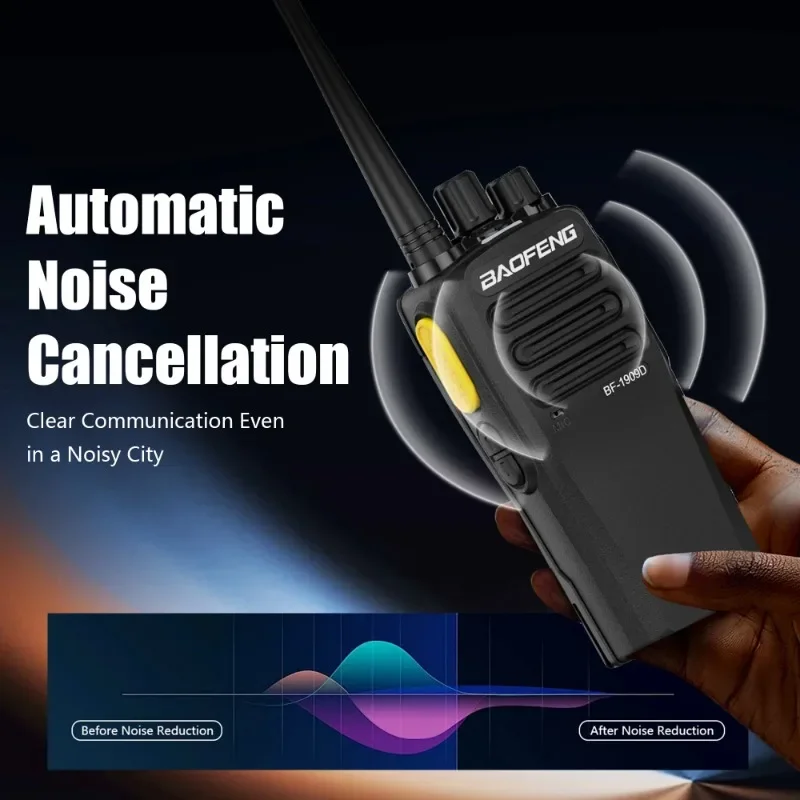

【Intelligent Noise Cancellation】
The BF-1909D with noise reduction is highly recommended for use in noisy environments such as bars, long construction lines, and noisy workshops.
• Encrypted calls (up to 32 key configurations), making calls more confidential
• Speech noise reduction to significantly improve call quality in noisy environments
• Support non-standard sub tone and frequency hopping functions, Enhance signal concealment and anti-interference ability
• One-touch frequency matching and quick group formation, Simplify CPS programming operations, quickly match and connect specified channels with just one click, allowing users to quickly create or join groups

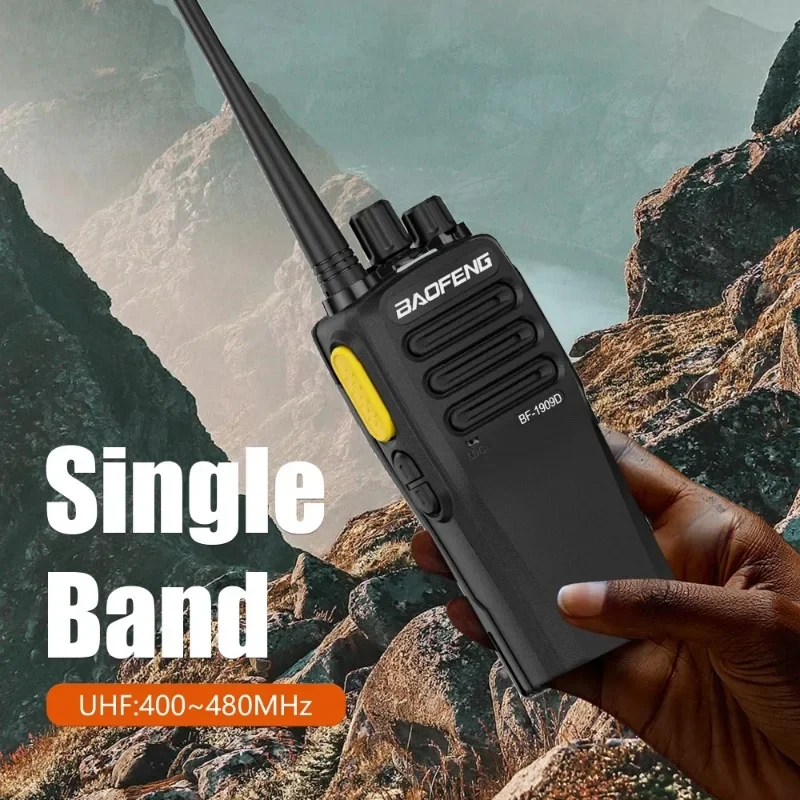

• UHF400-480MHz Transceiver
• Output power: Max 7W
• Channel spacing: 12.5 KHz/25.0 KHz
• Analog/ Encrypted channel Scan
• Vocal tuning
• Battery save
• Channel Monitor
• Analog Squelch
• 51 CTCSS tones and 210 DCS codes
• TOT (Time out timer)
• 2pin Kenwood accessory jack
Technical specifications
General
Frequency range:400~ 480 MHz
Working temperature:-20°+55° C
Operating voltage:3.7 V
Operate mode:Simplex

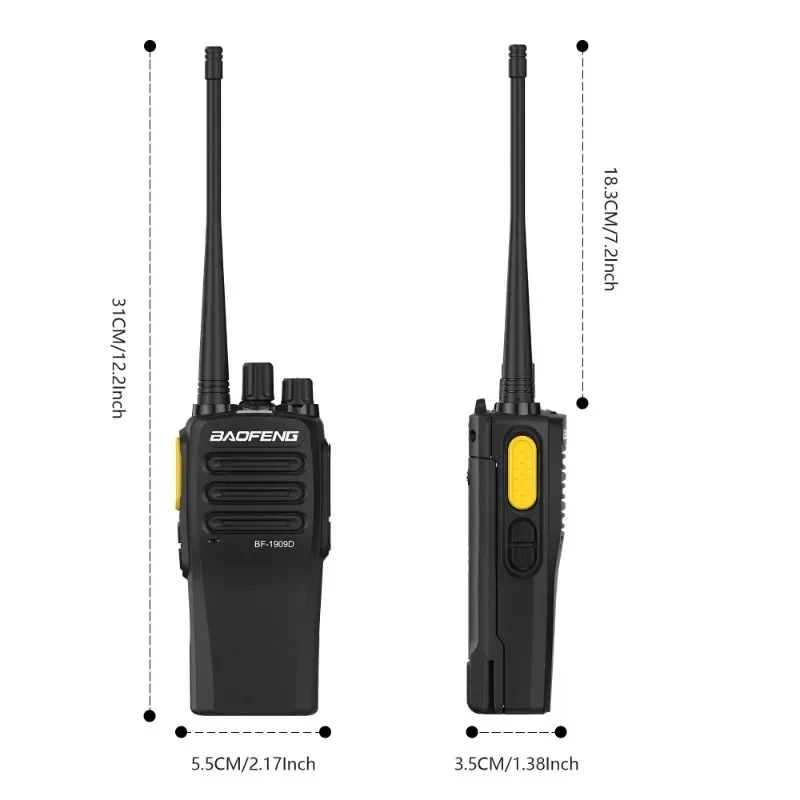

Dimensions:60 x 37 x 137 mm (without antenna)
Weight:270 g (Battery pack included)
Antenna impedance:50Ω
Transmitter
Frequency stability:±2.5PPM
Output power:≤500mW ERP
Max frequency deviation:±2.5KHz
Audio distortion:≤3%
Adjacent channel power:< 60 dB
Receiver
RF sensibility:<0.2UV@20 dB SINAD
Audio distortion:≤3%
Audio response:300Hz ÷ 3KHz
Adjacent channel selectivity:Within European legal terms
WARNING: Direct plug-in ac/dc power supply must be used for disconnecting the transceiver from the mains; the desktop charger must be positioned close to the unit and easily accessible.

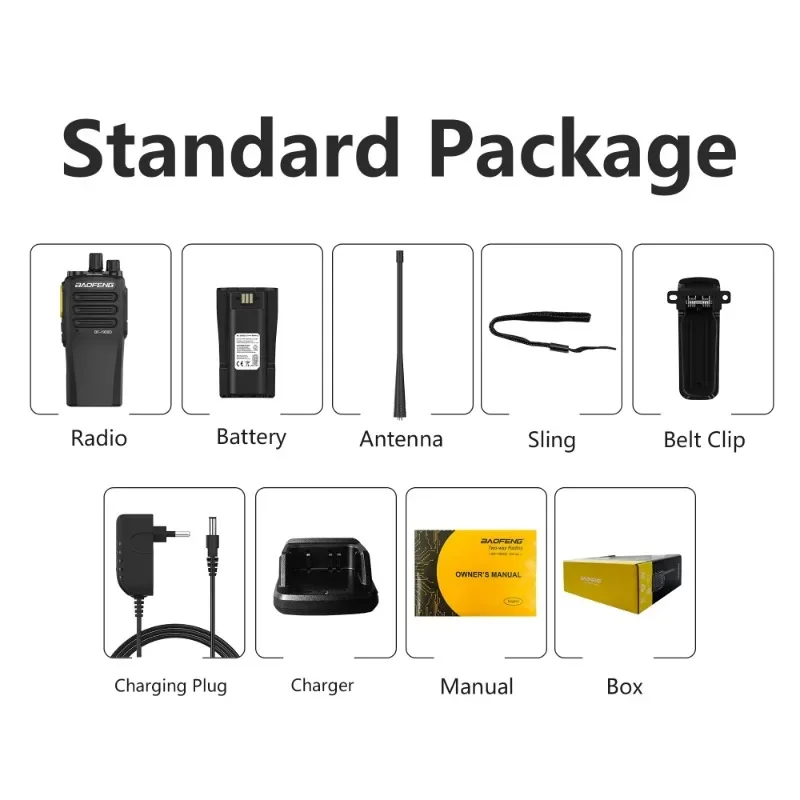

1PCS Package Include:
1 x Portable radio
1 x Antenna

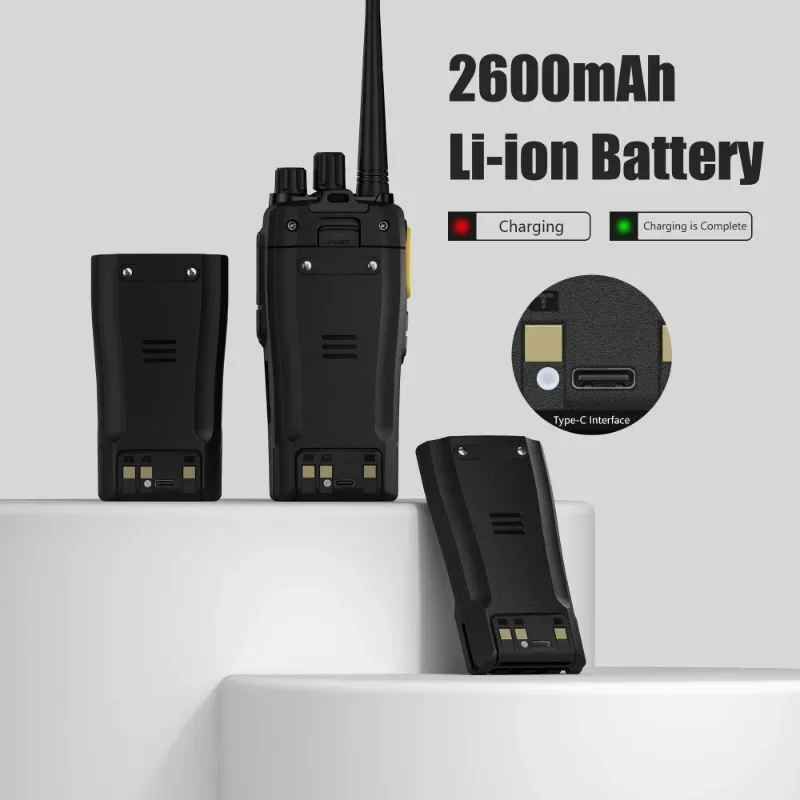

1 x Li-ion battery pack
1 x Charger
1 x Type-C Charger Cable
1 x Belt clip
1 x Sling
1 x User´s manual
1 x Box
2PCS Package Include:
2 x Portable radio
2 x Antenna
2 x Li-ion battery pack
2 x Charger
2 x Type-C Charger Cable
2 x Belt clip
2 x Sling
2 x User´s manual
2 x Box
Note:Other accessories depends on your choice in the link.
