Baofeng BF-888HD UHF 2W Digital Encrypted & Analog VOX Noise Reduction Wireless Clone Frequency Copy Type-C Charge Walkie Talkie #Baofeng BF-888S UPGARDE MODEL#
Super Features
-Voice recognition and intelligent noise reduction, easy to deal with noisy environments;
-Subversive digital calls, rejecting any frequency sweeping and code breaking, truly confidential communication;
-Analog frequency sweep function, easy to match other intercom devices;
-Wireless cloning, batch copying, no need to program computer by computer
-Support non-standard CTCSS, frequency hopping function, enhance signal concealment and anti-interference ability
-Rich shortcut operation (two function keys combined operation), to meet the common functions of the manual setup
Main Functions
-UHF400-480MHz, full-band reception and transmission
-16 Channel memory, can be digital channel, analog channel
-Press and holding side button function customization: Monitor, Alarm function
-51 Groups of standard CTCSS, 105 groups of standard DCS, support non-standard analog CTCSS
-4 Groups of squelch: Normally open, Normal, Strengthened, Strict
-VOX voice-activated emission and 5-Level voice-activated level setting
-Channel scan and scan channel addition (analog channel, digital channel)
-High and low transmit power selection
-Chinese and English language settings, support for more small language reporting (Russian, French, Portuguese, Spanish, German)
-Type-C charging, convenient and fast
– Flashlight functions
– One-touch access to current power leve
Specifications:
| General | |
| Frequency Range | UHF 400-480MHz |
| Channel Spacing | 25KHz/12.5KHz |
| Channel Capacity | 16 |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50 ohm |
| FCC Description | ID:2AJGM-888HD
Digital Radio (410-469MHz) |
| IC Description | 25962-888HD
Digital Radio (410-430,450-470MHz) |
| CE Description | Digital Radio 430-440MHz, HVIN:888HD |
| Operating Temperature | -10°c~+60°c |
| Operating Voltage | 3.7V |
| Battery Capacity | 1500mAh (Li-ion) |
| Battery Life (5-5-90 Duty Cycle) | 14H |
| Weight (with Antenna & Battery) | 155g |
| Dimension(H*W*L) with Battery,Antenna | 251*47*29mm |
| Transmitter | |
| High RF Power Output | 2W |
| Low RF Power Output | 0.5W |
| FM Modulation | [email protected],6KOF3E@25KHz |
| Conducted/Radiated Emission | -20dBm<1GHz,-20dBm>1GHz |
| Modulation Limiting | ±2.5KHz @12.5KHz,±5.0KHz@25KHz |
| FM Hum & Noise | [email protected],45dB@25KHz |
| Adjacent Channel Power | [email protected],70dB@25KHz |
| Audio Response | +1-3dB |
| Audio Distortion | ≤3% |
| Receiver | |
| Analog Receiver Sensitivity | 0.22uV (Typical)(12dB SINAD) |
| Inter-Modulation | [email protected]/25KHz |
| Adjacent Channel Selectivity | 70dB/60dB |
| Spurious Response Rejection | 70dB |
| Audio Response | +1~-3dB |
| Rated Audio Power Output | 1W@8ohm |
| Rated Audio Distortion | ≤5% |
| Hum & Noise | [email protected],40dB@25KHz |
| Conducted Spurious Emission | -57dBm<1GHz,-47dBm>1GHz |

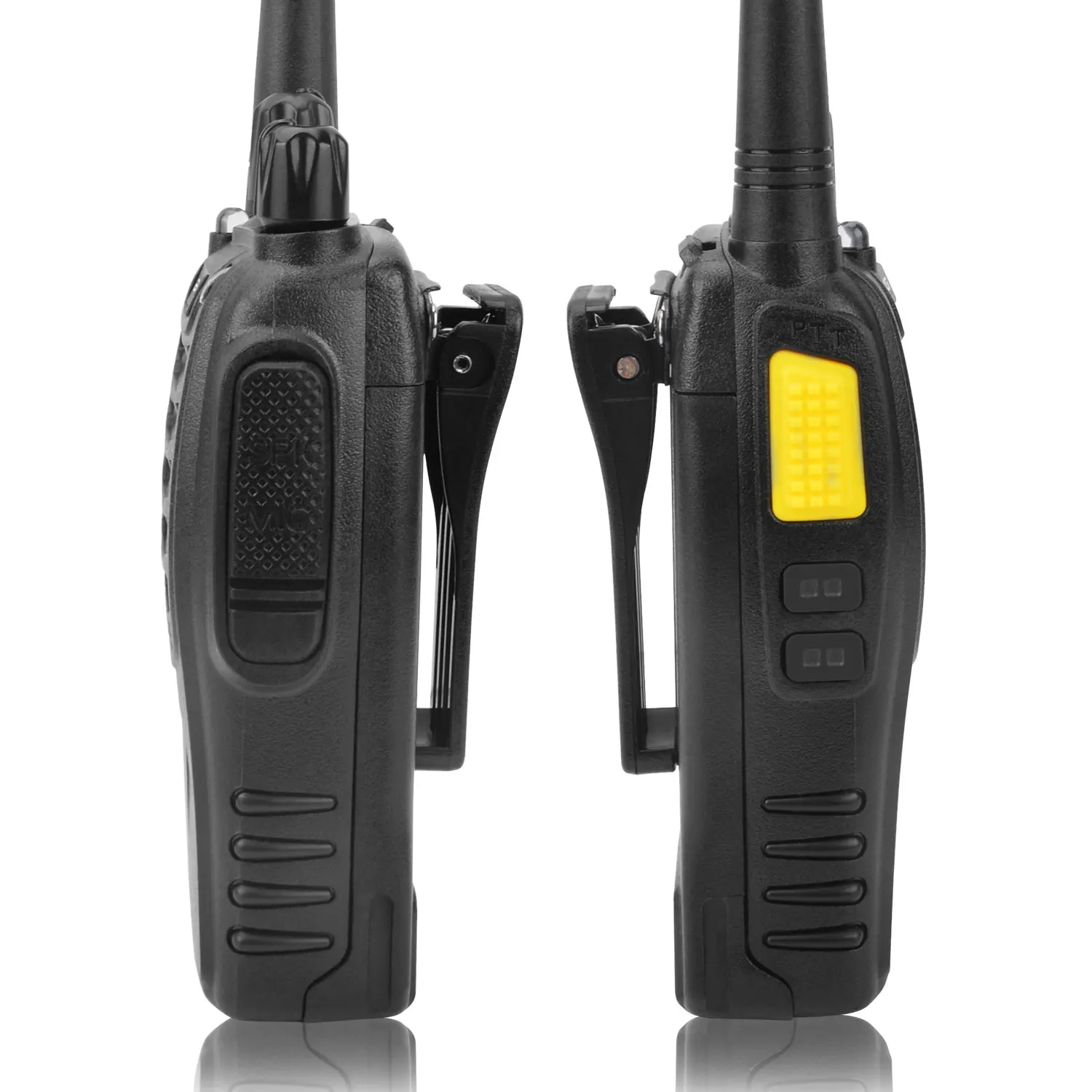

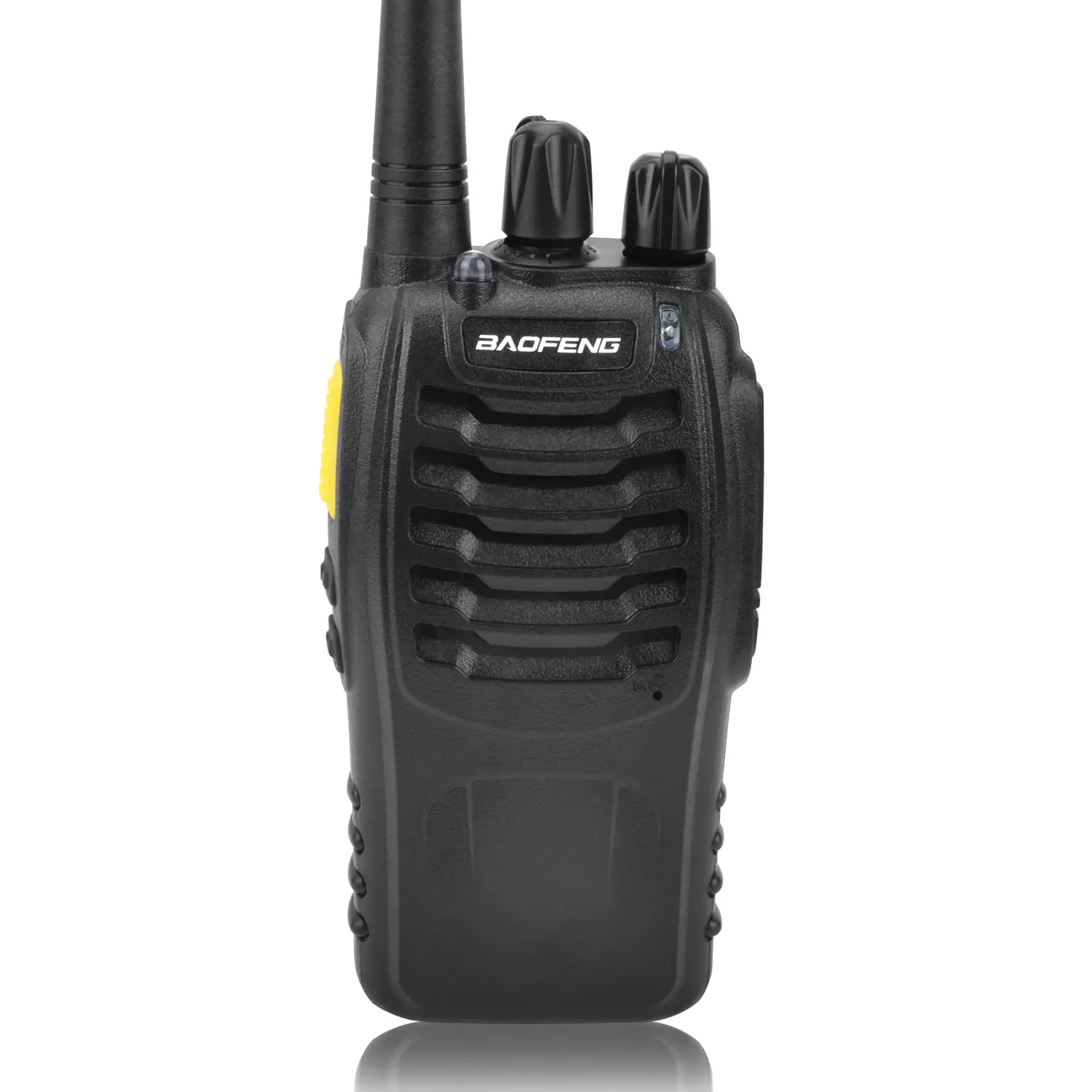

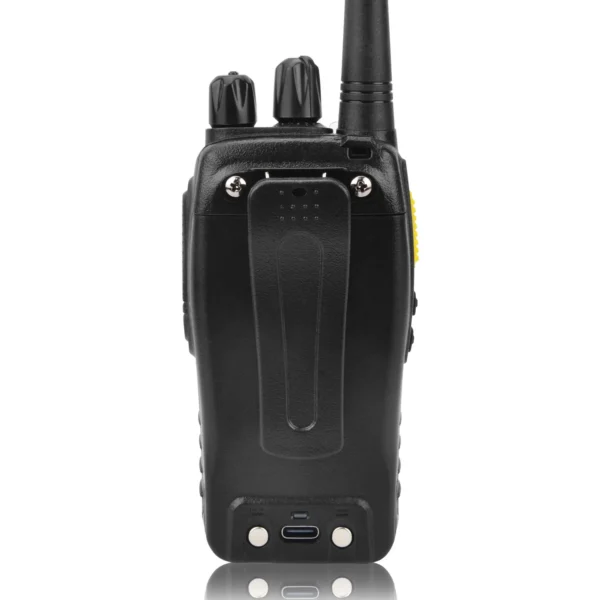

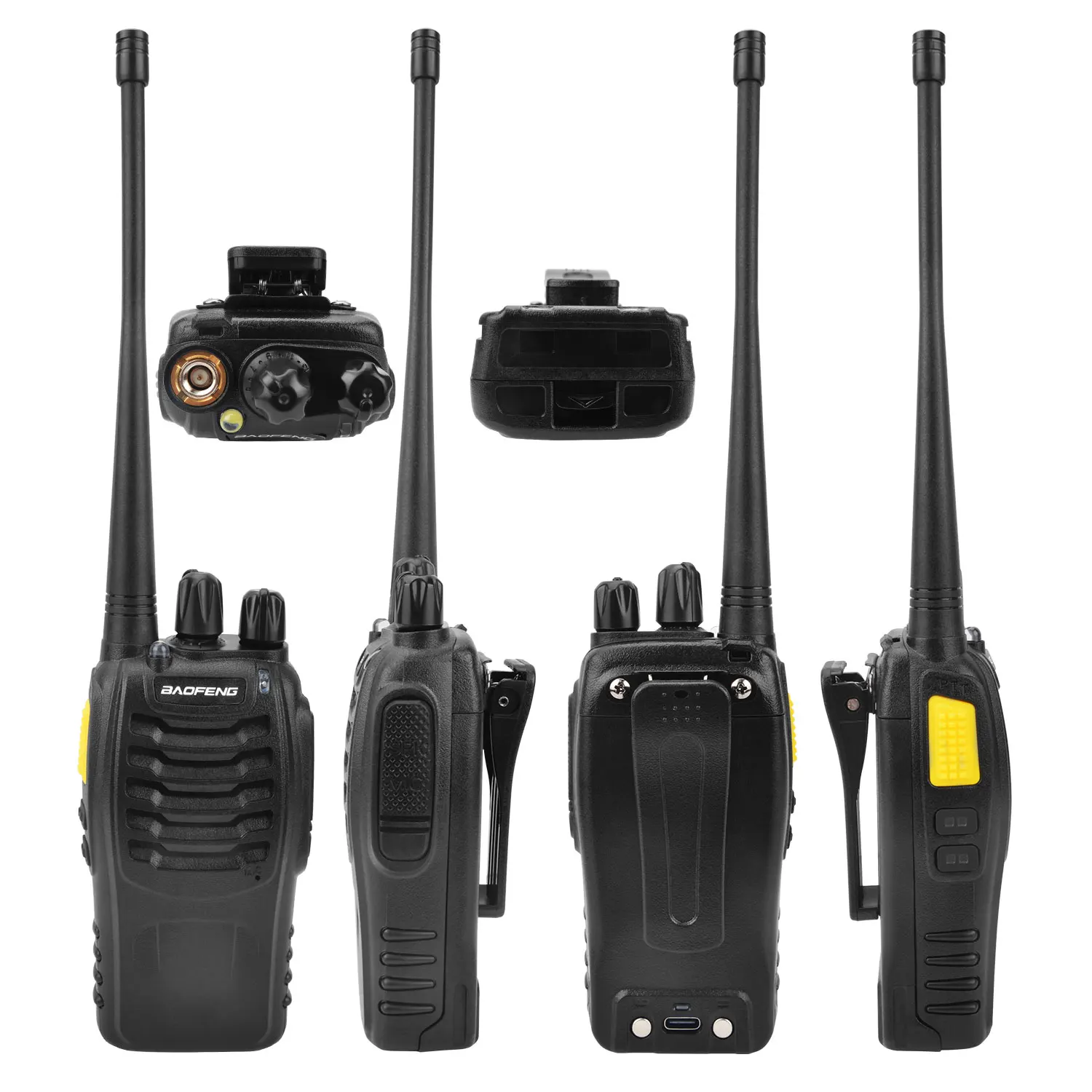

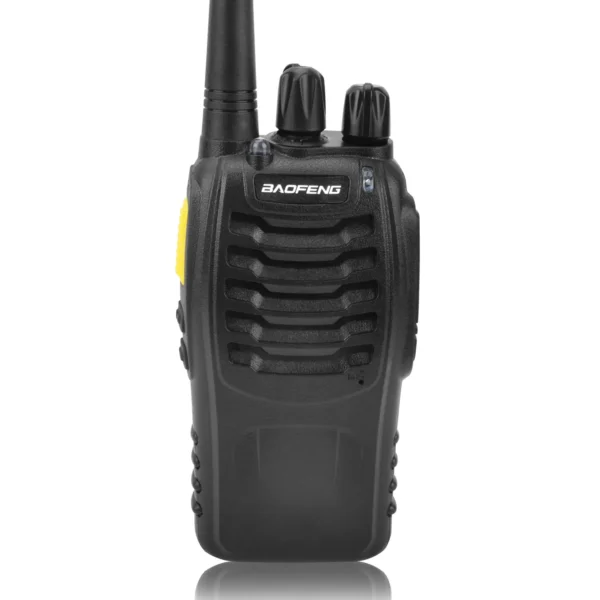

Photos:

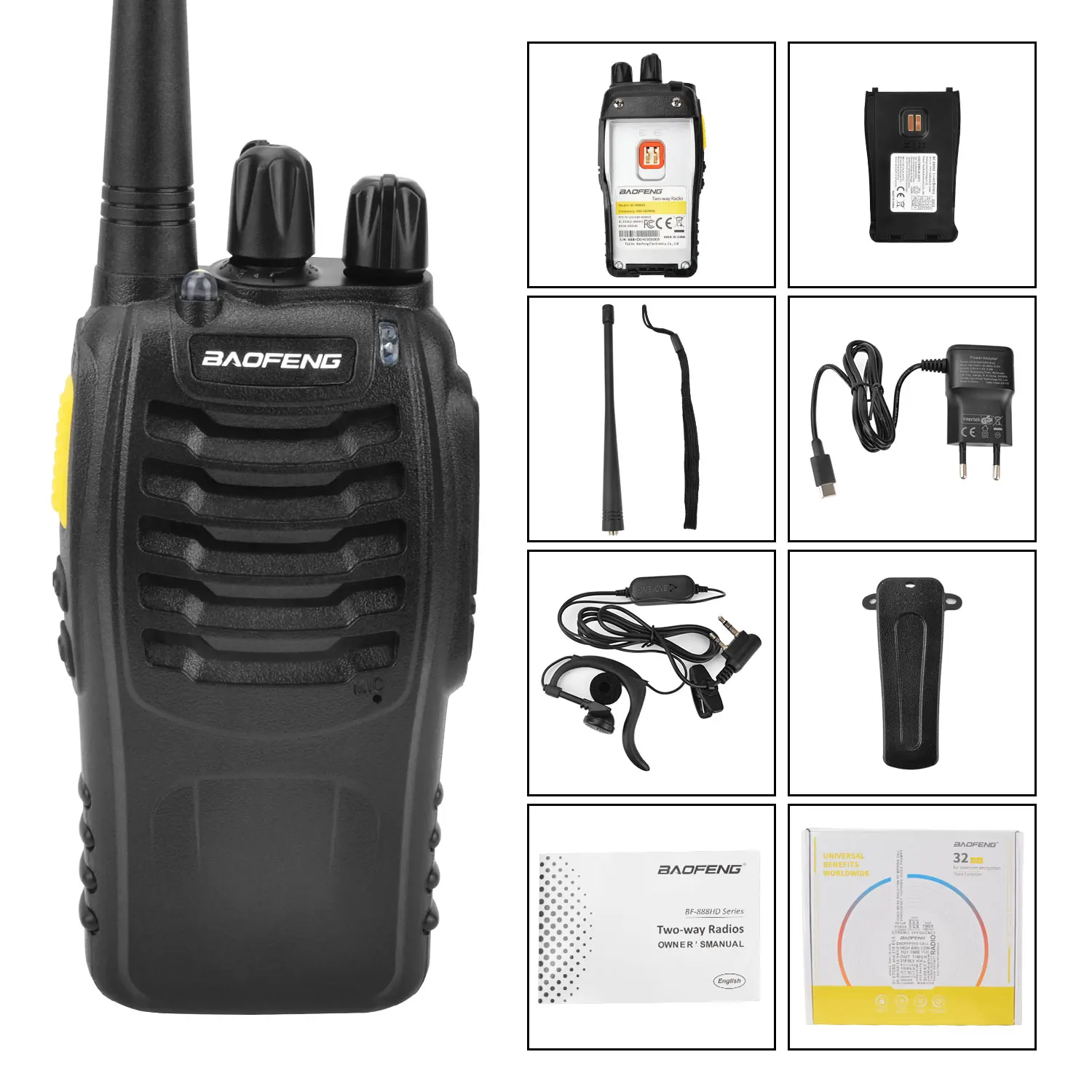

Standard Accessories:
1Ă—Baofeng BF-888HD Radio Body
1Ă—Â 3.7V 1500mah Li-ion Battery Pack with Type-C charging PortBC-888SD
1Ă—Â SMA-Female UHFÂ Antenna
1Ă—Â Headset
1Ă—Â Belt Clip
1Ă—Â ENG Manual
1Ă—Â Type-C charging Cable with AC Adapter
1Ă— Handstrap
