Sale!

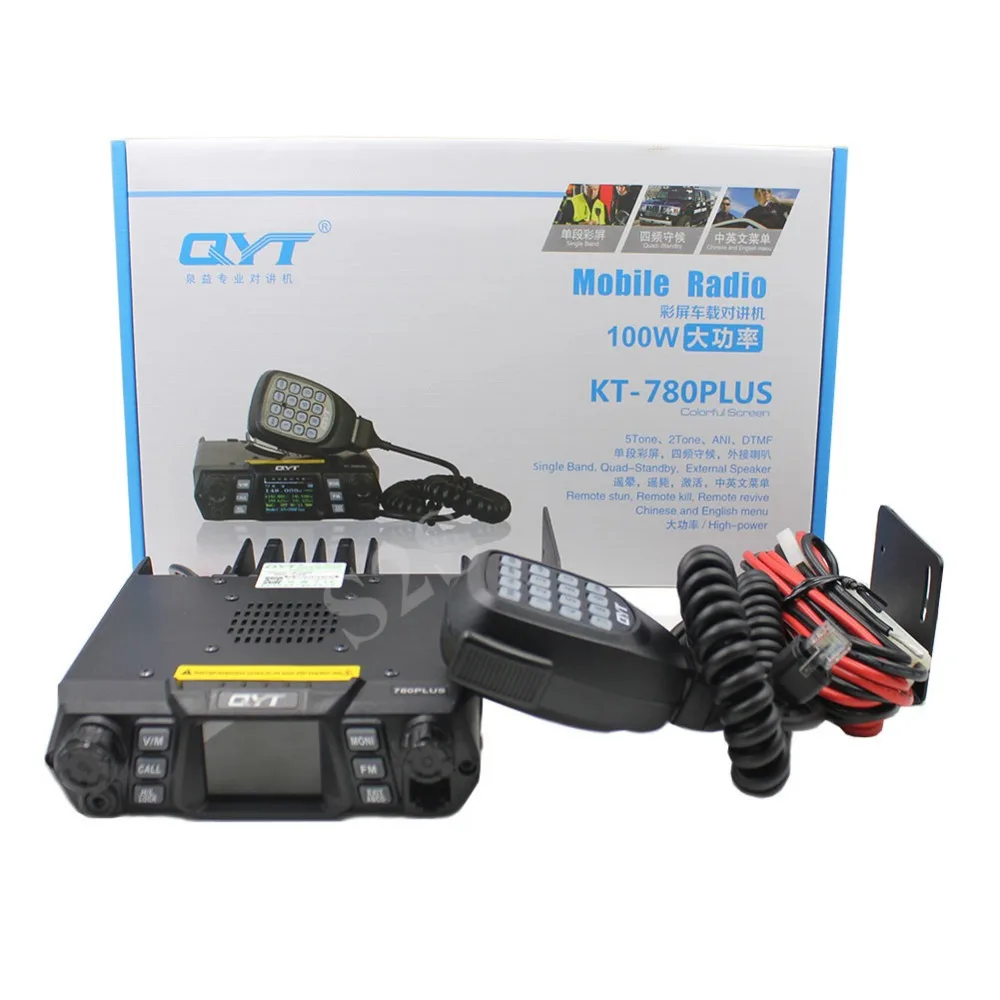

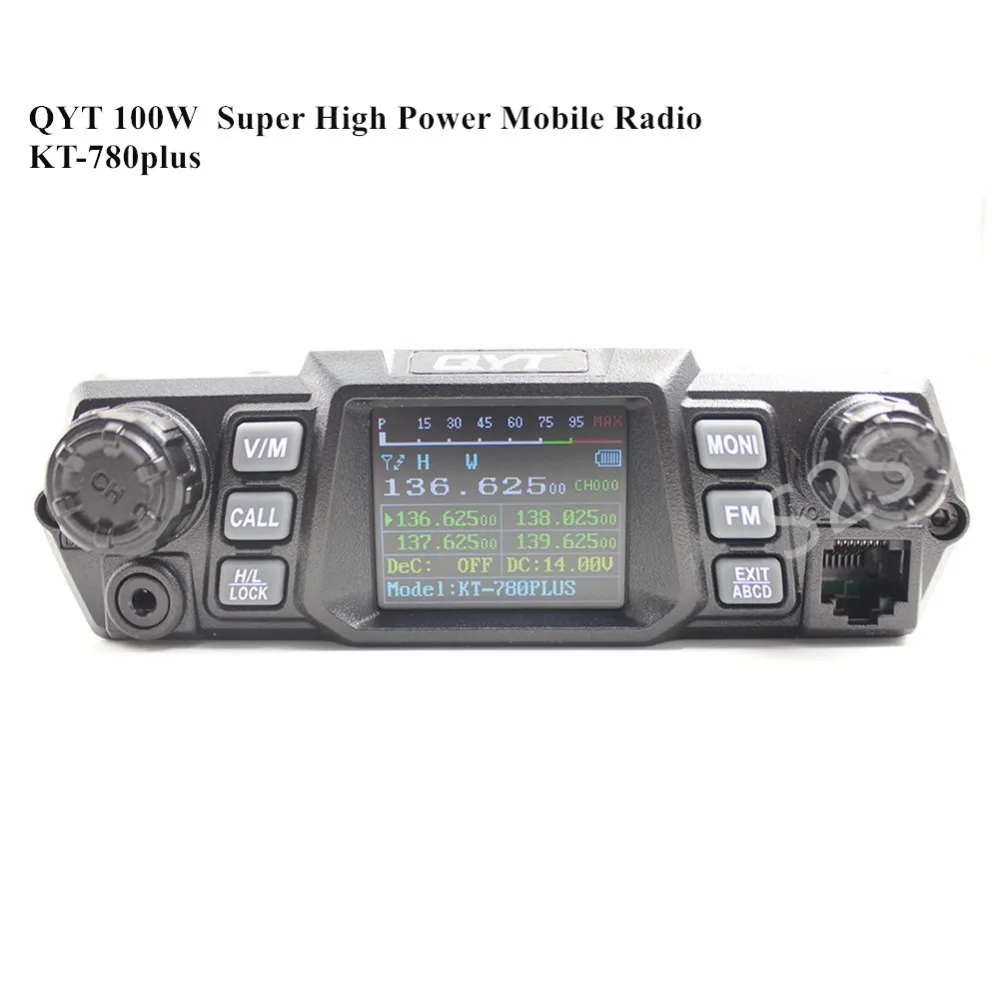

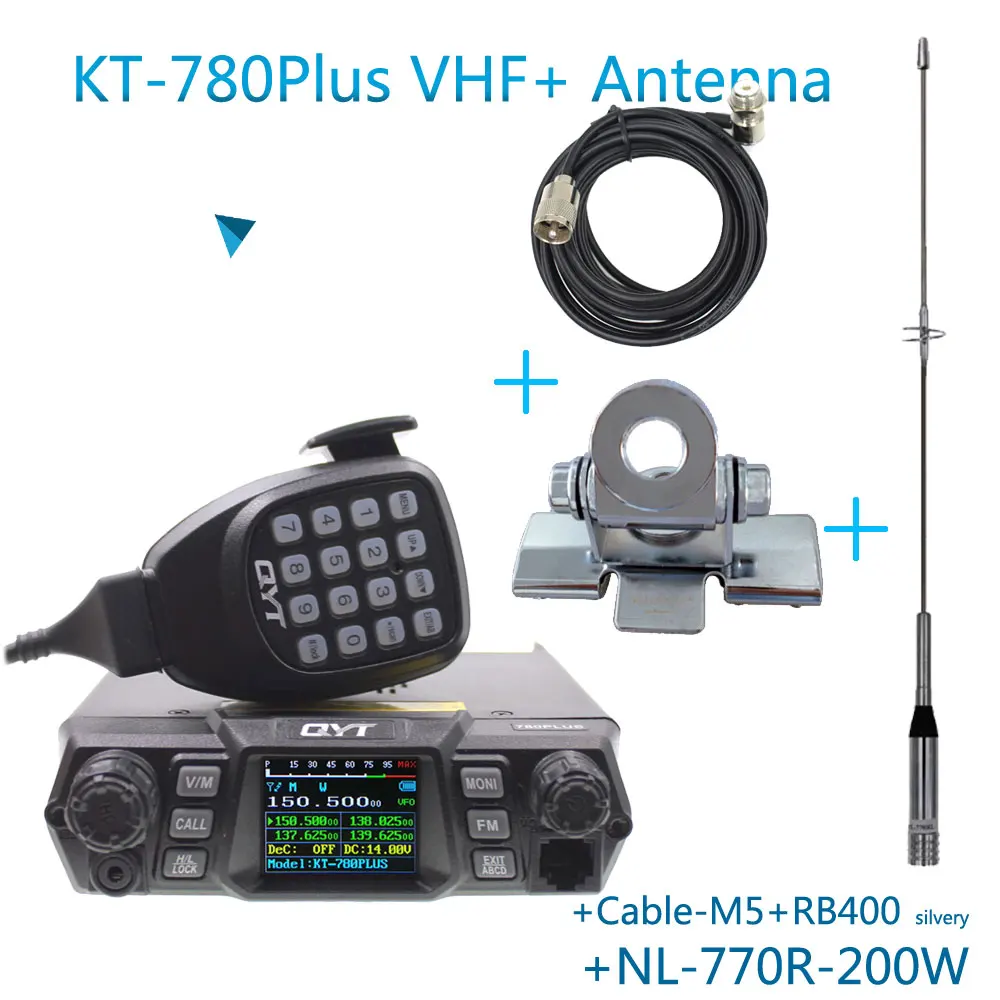

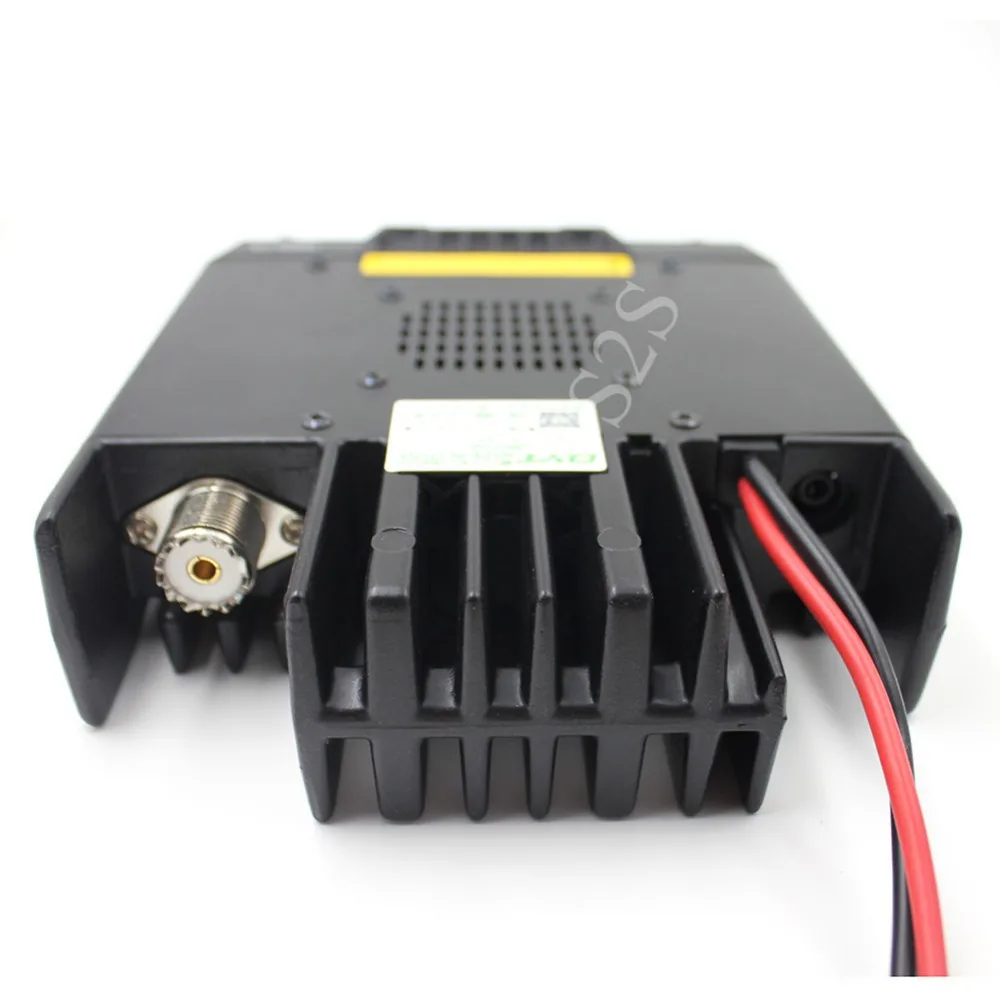

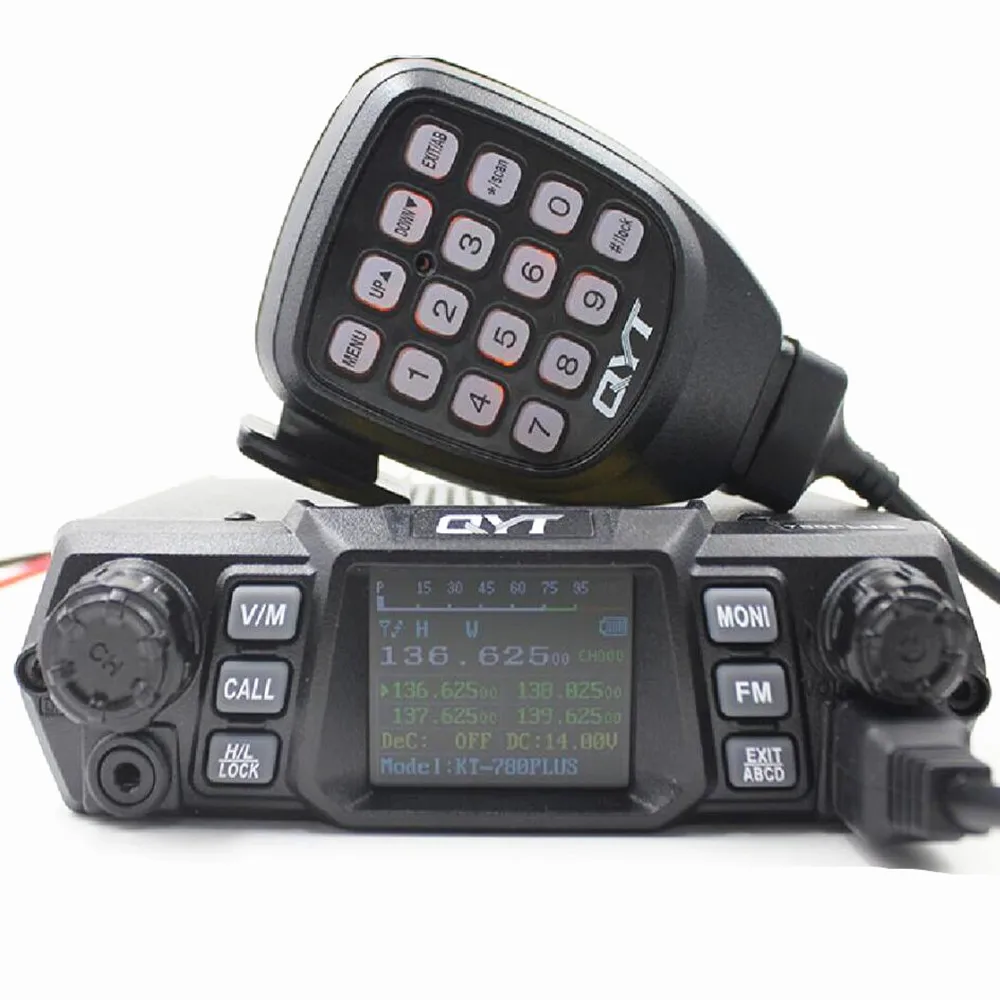

QYT KT-780 Plus VHF 136-174MHz Car Radio 100 Watts Super High Power Mobile Transceiver

Name: QYT KT-780 Plus VHF 136-174MHz Car Radio 100 Watts Super High Power Mobile Transceiver
SKU: 32829137575
Availability: InStock

Price range: $190.02 through $227.97

& Free Shipping

Color

11.5cm Magnet Set

11.5cm Magnet-USB

9cm Magnet Set

9cm Magnet Set-USB

Black Clip Set

Black Clip Set-USB

KT-780plus-VHF

Sliver Clip Set

Sliver Clip Set-USB

USB Cable

Clear

Guaranteed Safe Checkout

SKU: 32829137575 Categories: QYT Radio, Two Way Radio Tags: Car Radio, Mobile Radio, QYT, Vehicle Radio

General Specifications

Frequency	VHF:136-174MHz
Channels	200
Channel Spacing	25KHz（Wide） 20K（Middle）12.5（Narrow）
Phase-locked step	2.5KHz、5KHz、6.25 KHz、10 KHz、12.5 KHz、25 KHz
Working Voltage	13.8V DC±15%
Squelch	carrier wave、CTCSS、DCS、5Tone、2Tone、DTMF
Frequency Stability	±2.5ppm
Working Temperature	-20+60℃
Size	140(W)43(H)172(D) mm
Weight	1.03kg

Receiver（ETSI EN 300 086 Standard）

	Wide	Narrow
Sensibility（12db SINAD）	≤0.25μν	≤0.35μν
adjacent-channel selectivity	≥70db	≥60db
intermodulation	≥65db	≥60db
Spurious Rejection	≥70db	≥70db
audio response	+1~~3db（0.3~3KHz）	+1~~3db（0.3~2.55KHz）
Signal-to-Noise	≥45db	≥40db
Audio Distortion	≤5%
Audio power	≥2W@10%

Transmitter（ETSI EN 300 086 standard）

	Wide	Narrow
Output Power	VHF H100W(16A) M 50W(9A) L 20W(6A)
Mpdulation	16KΦF3E	11KΦF3E
adjacent-channel selectivity	≥70db	≥60db
Signal-to-Noise	≥40db	≥36db
audio response	+1~~3db（0.3~3KHz）	+1~~3db（0.3~2.55KHz）
Audio Distortion	≤5%

Weight	2 kg
Dimensions	40 × 30 × 30 mm
Color	11.5cm Magnet Set, 11.5cm Magnet-USB, 9cm Magnet Set, 9cm Magnet Set-USB, Black Clip Set, Black Clip Set-USB, KT-780plus-VHF, Sliver Clip Set, Sliver Clip Set-USB, USB Cable
