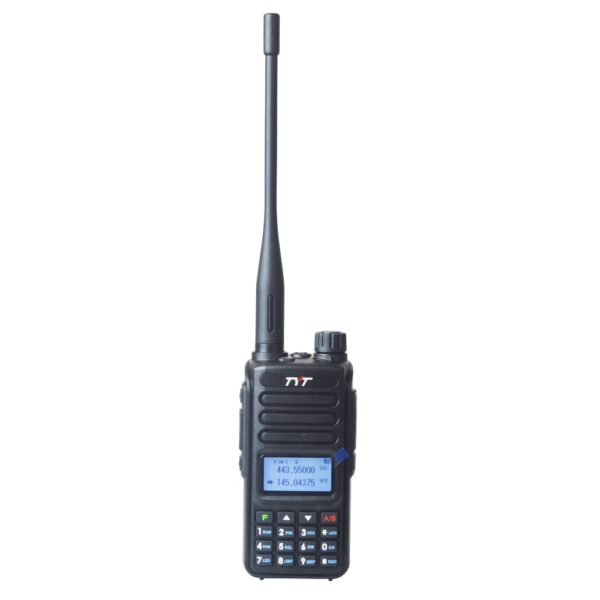

TH-UV98 10W VHF UHF dual band scrambler VOX FM Analog handheld talkie walkie TYT Portable Two way Radio 10km 200CH
Features:
-Dual Band, Dual Display, Dual Standby
-DOT-MATRIX LCD display
-High/Medium/Low Power Selectable
-10W Output Power
-Scrambler
-VOX
-FM Analog Radio
-2/5 tones DTMF
-1750Hz Tone
-Channel/Frequency Scan
Specifications:
|
General |
|
|
Channel |
200 |
|
Operating Voltage |
7.4VDC |
|
Operating Temperature |
-10°C ~+50°C |
|
Weight |
225g (Battery and Antenna Included) |
|
Dimensions |
121*59*34mm |
|
Transmitter |
|
|
Frequency |
136-174/400-480MHz |
|
Power |
10W (VHF)/9W (UHF) |
|
Modulation Type |
10W |
|
Spurious Power |
≤-15dB |
|
Modulation Noise |
<-40dB |
|
Modulation Distortion |
<5% |
|
Frequency Stability |
5ppm |
|
Max Fr. Deviation |
<±5KHz |
|
Current |
≤1600mA |
|
Audio Response (300-3400Hz) |
+6.5~-14dB |
|
Adjacent Ch Power |
≥60dB |
|
Receiver |
|
|
Sensitivity |
≤0.2uV |
|
Occupied Bandwidth |
≤16KHz |
|
Selectivity |
≥65dB |
|
Intermediation |
≥55dB |
|
Audio Power |
>500mW |
|
Audio distortion |
≤10% |
|
Frequency Stability |
5ppm |
|
Current |
Standby:60mA, |
|
Audio Response(300-3400Hz) |
+7~-12.5dB |
Package Contents:
1× TYT TH-UV98 10W Radio
1×3200mAh Li-ion Battery Pack
1× SMA-Male High Gain Antenna
1× Desktop Charger
1× AC Adapter
1× User’s Manual
