Baofeng SW-9 Amateur FM Radio Shortwave UHF VHF Air Band Full band FM AM SSB App Wireless Program NoAA Freq Sweep Walkie Talkies

Baofeng SW-9 Amateur FM Radio Shortwave UHF VHF Air Band Full band FM AM SSB App Wireless Program NoAA Freq Sweep Walkie Talkies

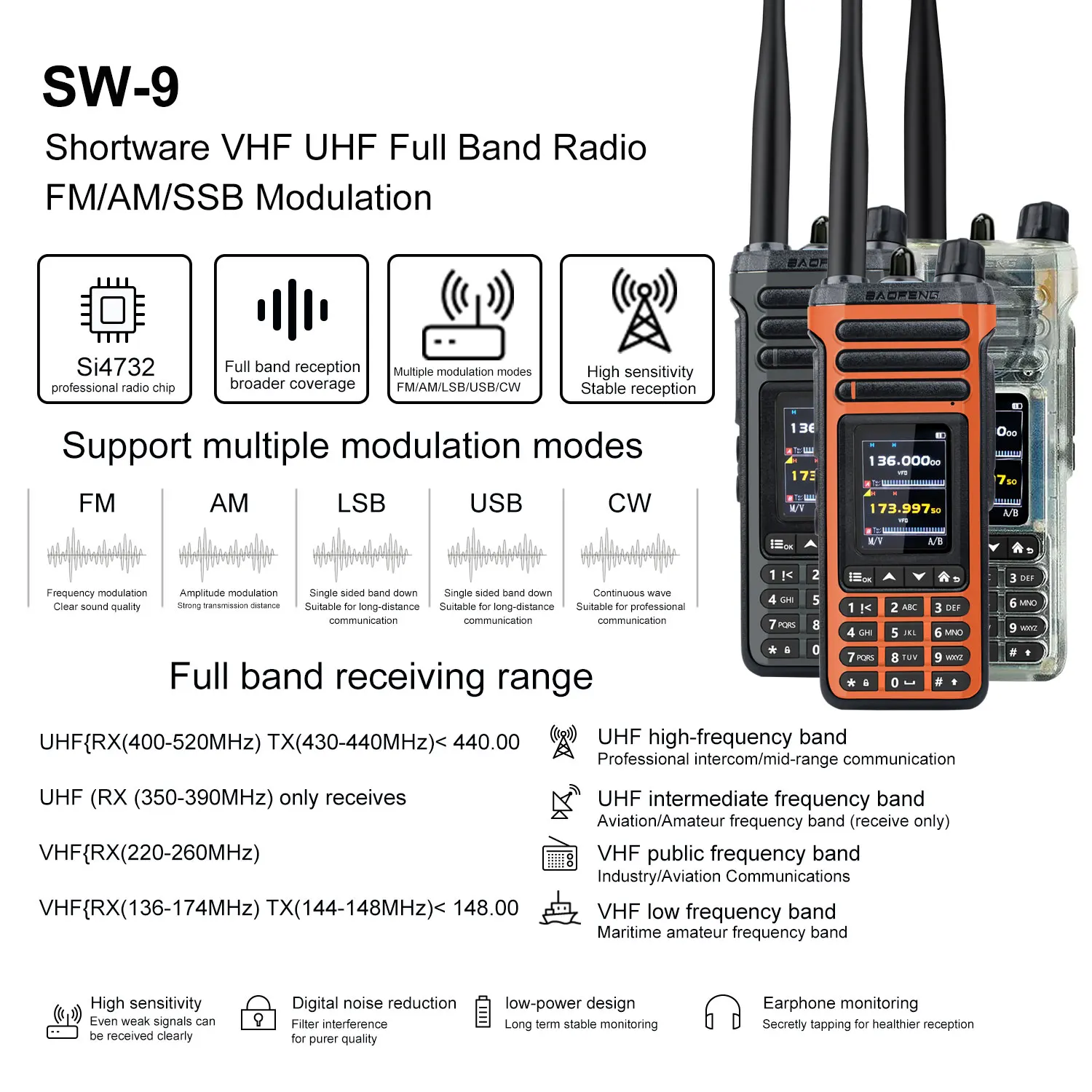

Main Features:

• Freq Range:

Amateur Band:

Tx:144-146MHz, 430-440MHz

Rx:108-136MHz,136-174MHz,200-260MHz,350-390MHz,400-600MHz

BT/BLE:2402-2480MHz

FM(Rx):65-108MHz

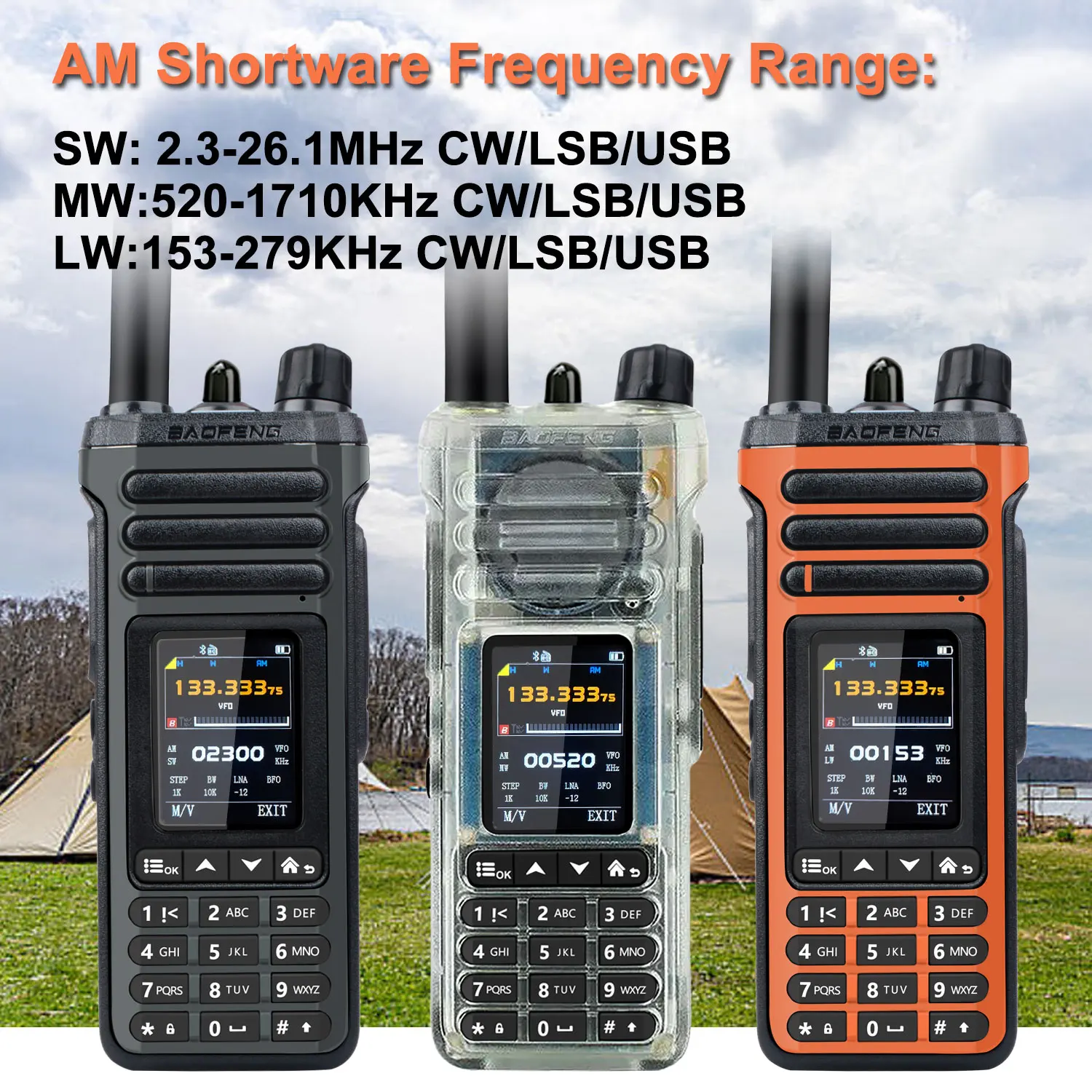

AM(Rx):LW 153-279kHz,MW 520-1710kHz,SW 2.3-26.1MHz

LSB (Lower Sideband)/USB(Upper Sideband)/CW(Comparable Wave) frequency range 150K-29999KHz

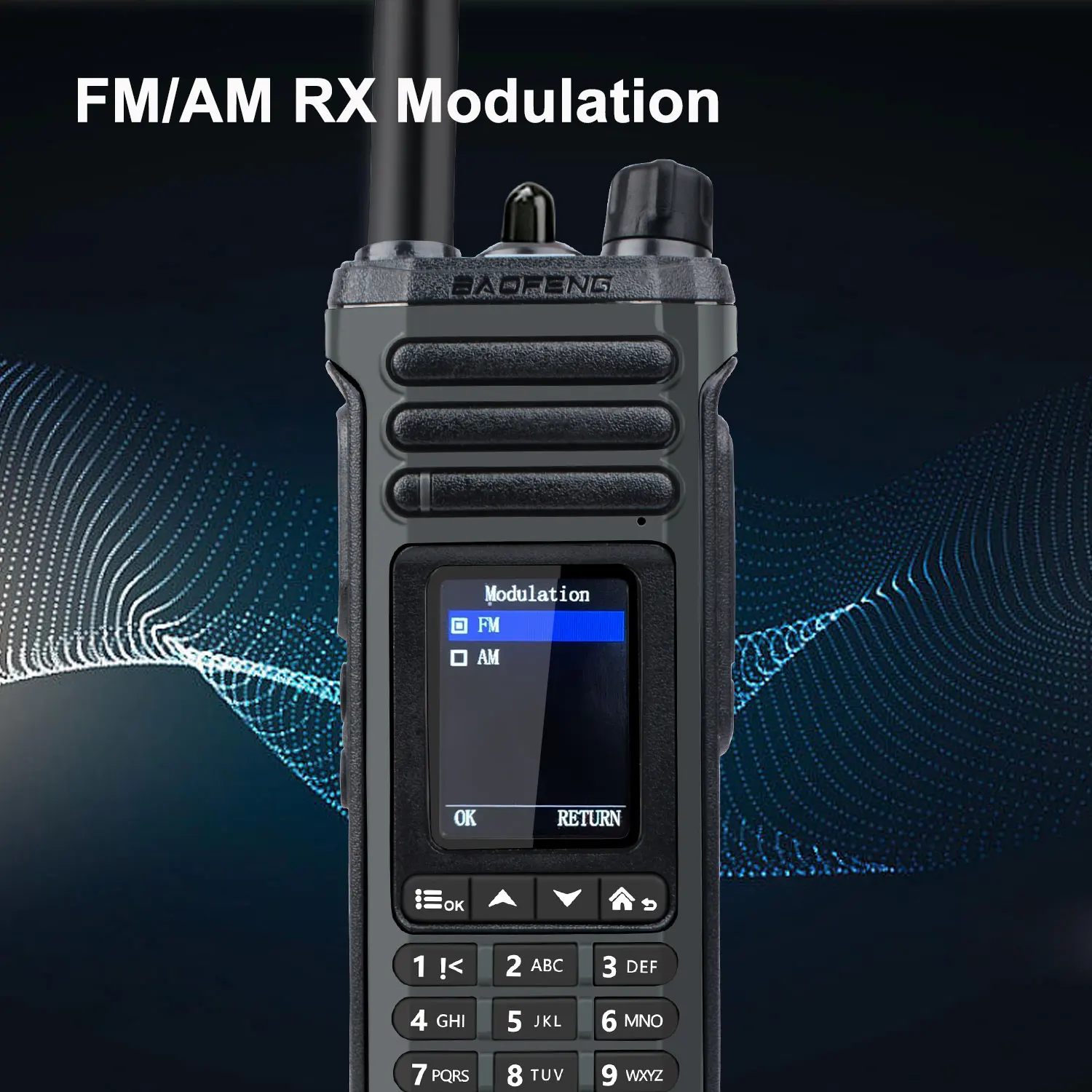

•        Si4732 Full-band radio receive,support FM/AM/LSB/USB/CW modulation mode,support MR channel and VFO Frequency                 mode.

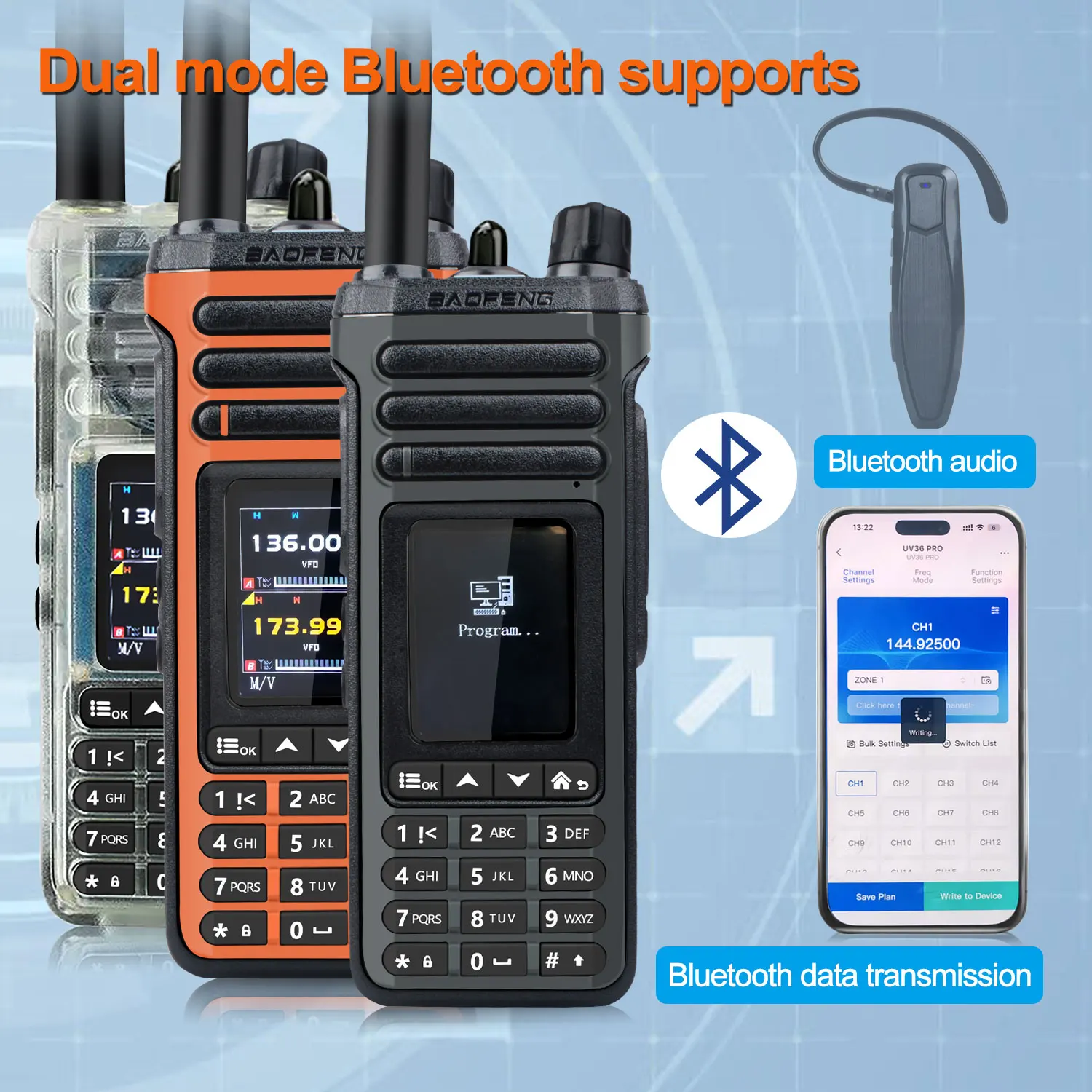

•        Dual-mode Bluetooth,support Bluetooth audio (BLE+Bluetooth audio),Bluetooth data (program radio)

• 2.0”TFT large screen,full keypad,full open menu operations

• 10 zones/1000 channels storage,manage channel groups by zones

• Built-in input method,support local edit channel name,receive frequency, transmit frequency

• Man down alarm.Trigger mode,Tilt angle,cur delay time,pre cue time setting

• Dual Watch,dual Standby

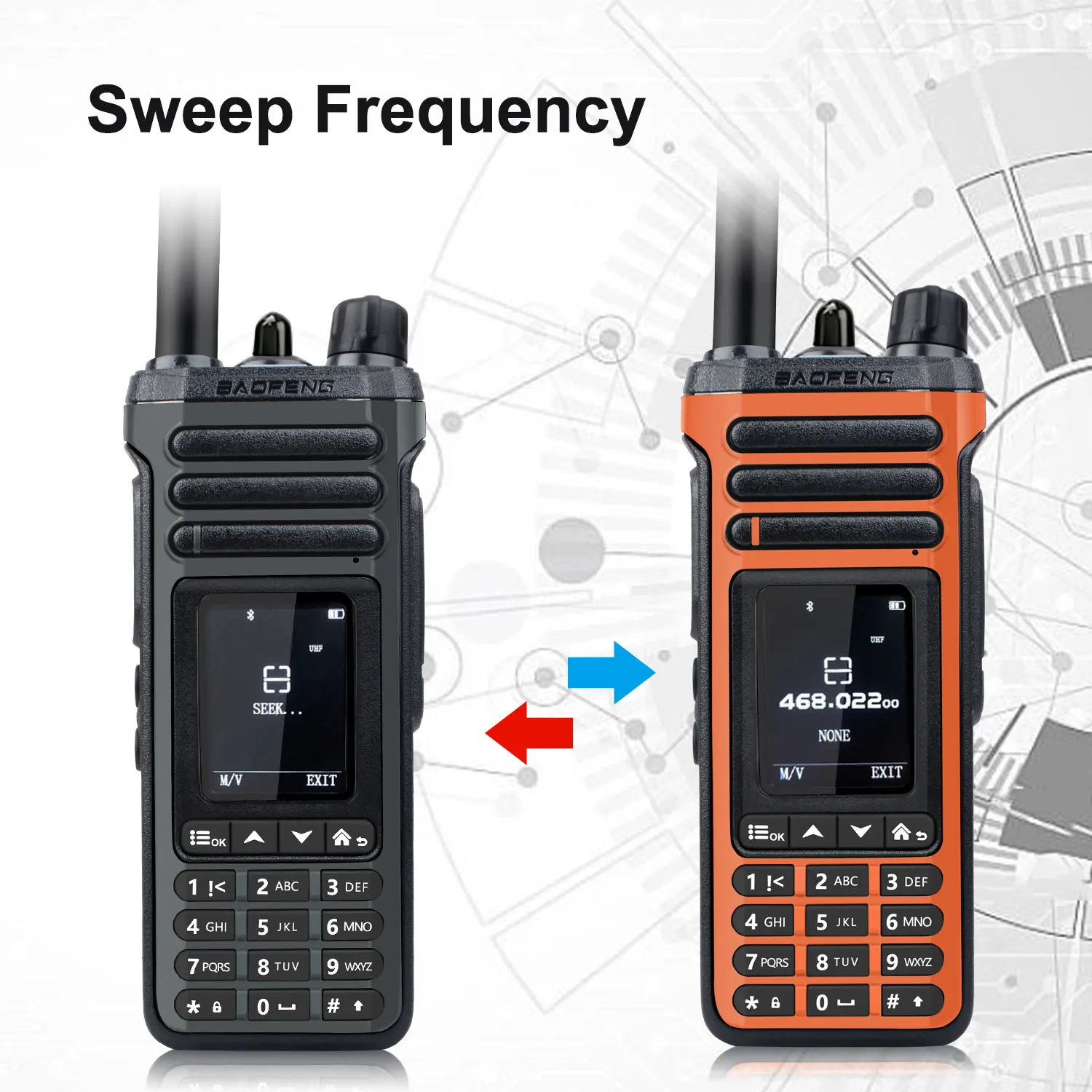

• One touch frequency search

• NoAA Weather alerts channels for USA.CA and MEXICO

• 8W/5W/2W RF Output,high,medium and low power adjustable

• Characteristic scanning function: channel scanning,frequency scanning,CTCSS/DCS Scanning

• Side Key 1 customized function: VOX, SEARCH,SCAN,Bluetooth Audio

• Frequency difference frequency,frequency difference direction,inverted frequency,relay activation audio and other replay function settings.

• 2500mAh Rechargeable Type-C Lithium Battery

Technical Description:

Frequency Range:

Tx:144-146MHz, 430-440MHz

Rx:108-136MHz,136-174MHz,200-260MHz,350-390MHz,400-600MHz

BT/BLE:2402-2480MHz

FM(Rx):87.5-108MHz

AM(Rx):526.5kHz tp 1606.5kHz

Max. Transit Power:

Amateur Radio:36.10dBm

BT: 2.87dBm EIRP

BLE:3.52dBm EIRP

PackageContains:

1x Baofeng SW-9 Radio Body

1x High gain FM/136-174/400-520MHzAntenna 205cm

1x 2500mAhType-C Rechargeable Li-thium polymer BatteryBC-36UV

1x Type-C chargingcable withAC Adapter

1x Belt clip

1x English Manual

2xDonut AM(Red)/SW(Blue) Antenna (Optional)
