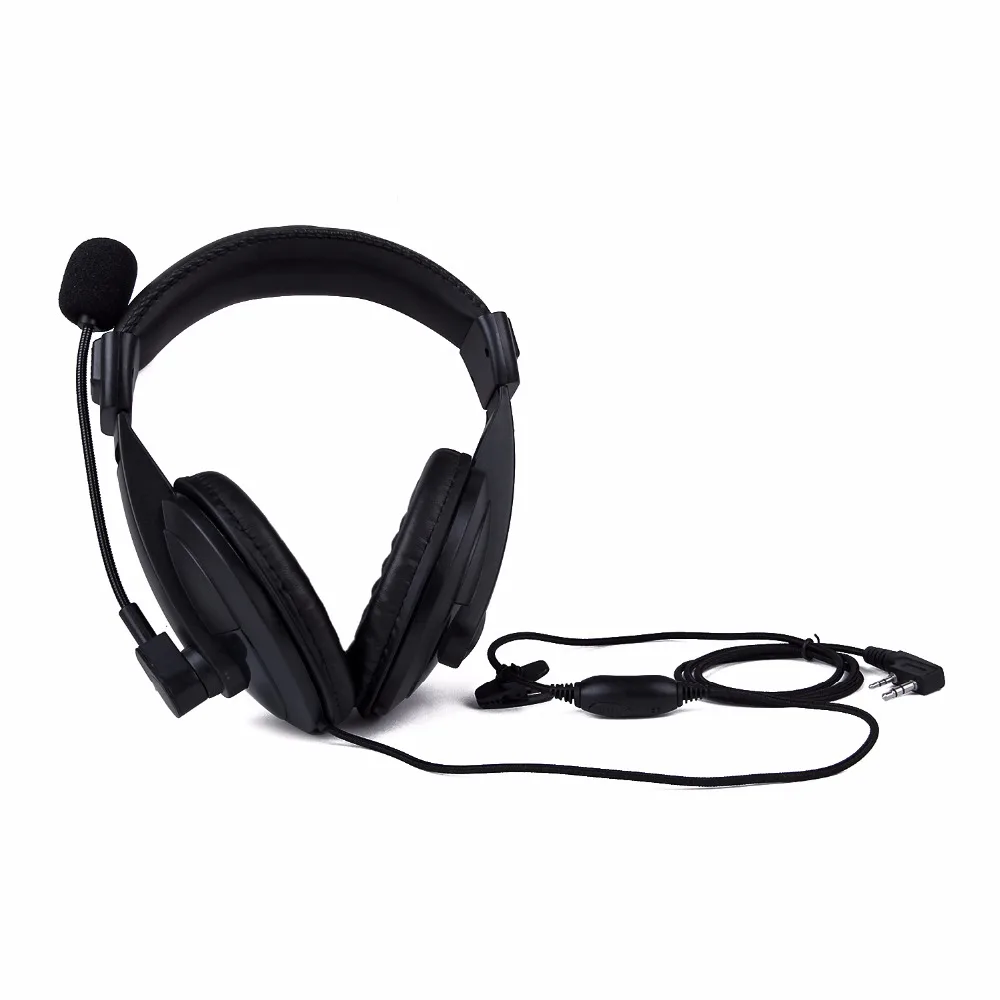

PTT VOX Earpiece Walkie Talkie Headset For Kenwood For Baofeng UV-5R Bf-888S For Retevis H777 RT5R RT7 For Puxing Radio Headset
Feature:
- Comfortable and noise-canceling sponge cushion
- Adjustable head band for comfortable wearing
- Canceling effect for ear protection in noisy environment
- VOX PTT, Easy to use walkie-talkie voice function
- PU tensile wire, wire soft and delicate, can be used in a complex environment
Specification
|
General Specification
|
|
|
Model |
R-114 |
|
Wire materials |
PU |
|
Wearing styles |
Headset |
|
Wire Length |
Approx:59.05in(150cm) |
|
Audio Interface Type   |
K |
|
Color |
Black |
|
Housing materials |
Environmental protection ABS |
|
VOX function |
Yes |
|
Weight |
Approx:6.74oz/191g |
|
Electrical Specifications for speaker section |
|
|
Speaker dimensions |
Ø40mm |
|
Speaker impedance |
8Ohm ±15% |
|
Rated input power |
1W |
|
Max.input power |
1.5W |
|
Sensitivity |
105±4 dB/ 1KHz |
|
Operation test |
Must be Normal |
|
Distortion Rate |
<5% |
|
Frequency response |
200HZ~ 20KHZ |
|
Electrical Specifications for Mic section |
|
|
MIC dimensions |
Ø6.0×5.0mm |
|
Sensitivity |
-50±3dB/U=2V; R=2.2Kohm. 1KHz |
Compatible model:
| Type |
Model |
|
RETEVIS |
H-777,R888s Plus,RT-5R,RT-B6,RT-5RV,RT1,RT2,RT3,RT5,RT7,RT8,RT21,RT22,RT24,RT23 |
|
for Kenwood KPG |
KPG27D,KPG29D,KPG48D,KPG49,KPG55D,KPG56D,KPG62D,KPG66D, |
|
for Kenwood TH |
TH-D7,TH-D7A,TH-D7AG,TH-D7E,TH-F6,TH-F6A,TH-F7,TH-F7E,TH-G71,TH-G71A,TH-G71E,TH-K2,TH-K2A,TH-K2E,TH-K2ET,TH-21,TH-21AT,TH-21BT,TH-22,Th-22A,TH-22At,TH-22E,TH-25,TH-26,TH-27,TH-28,TH31AT,TH41AT,TH41BT,TH-42,TH-42A,TH-42AT,TH-42E,TH-45,TH-46,TH-47,TH-48,TH-55,TH-75,TH-77,TH-G71,TH-205,TH-215,TH-225,TH-235,TH-235A,TH-235E,TH-315,TH-415 |
|
for Kenwood TK |
TK-208/308,TK-220/320,TK-240/340,TK-240D/340D,TK-248/348,TK-250/350/353,TK-260/360,TK-260G/360G,TK-270/370,TK-270G/370G,TK-272G/372G/373G,TK-278G/378G/388GPro-Talk,TK-430/431,TK-2100/3100Pro-Talk,TK-2102/3102 |
|
For BAOFENG |
Almost All:UV5R,UV8,UV8D,UVB5,UVB6,A52 ,UV5RA,UV5RC,UV5RD,UV5RE,UV5RE+,F8,F8+ |
|
For POFUNG |
UV-A52,UV-82,UV-8,UV-6,UV-5R,888s,5RA |
|
For HYT |
TC286/386/2685/3865/6685/278/378/388/2100/2088 |
|
For PUXING |
PUXING PX-777,PX-888,PX-888K,PX-325,PX-358 |
|
FORÂ QUSHENG/For LINTON/For TYT etc |
Almost all with a two pin plug, Former pin diameter of 3.5mm and 2.5mm in diameter after pin, double pin from 8 min within,11 mm center distance of 2 pin |
Notice:Â If your walkie-talkie type is not in the list above, please see my other items or email us your model number,Then, we will help you find one that suits for you.
